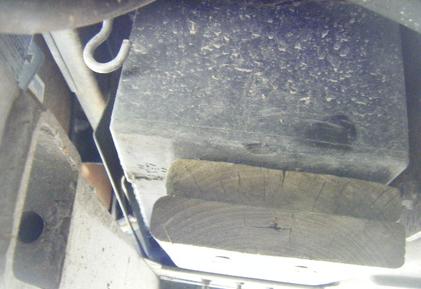

This view is where the battery box is on a 0lder model Roadtrek. The seller has modified the battery box with a metal strap and 2x6's. The battery was loose and freely moving around in the compartment.

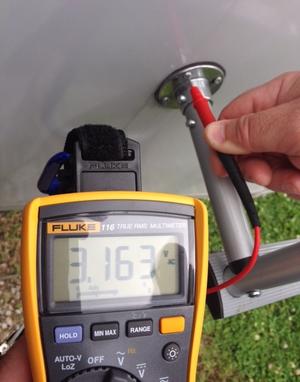

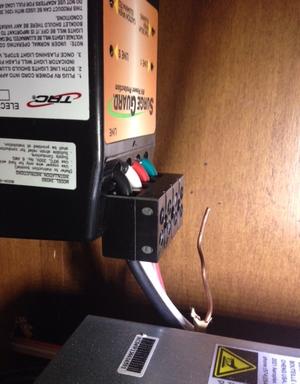

Condition called "Hot Skin" of 3.1 volts on exterior of RV. Found the cause in this case being an open neutral on the RV's Surge Guard where it had backed away from a loose terminal lug.

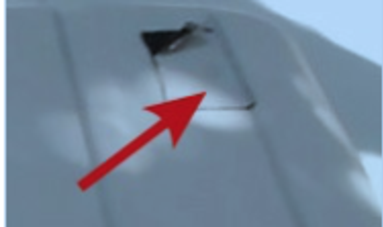

Hole in A/C cover on roof covered by tape

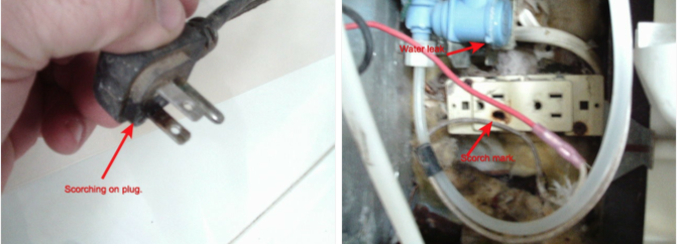

Here you see where water has dripped from the ice machine water solenoid on to the refrigerator plug causing arcing and if continued possible fire hazard

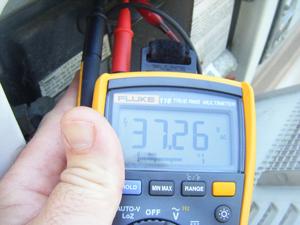

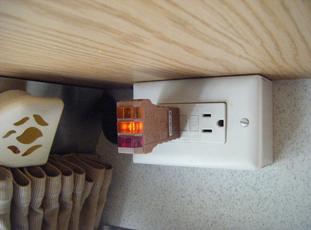

Another "Hot Skin" issue found on this RV. Over 37 volts was found on the water heater access cover and latch. Lower voltages were recorded on door locks and cargo door latches. The RV also had a open ground on all outlets on the RV. This is a life safety issue that could result in a shock when touching the outside of the RV.

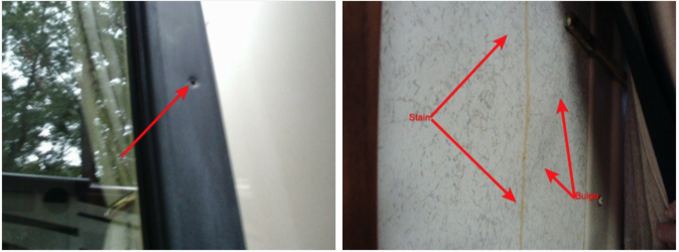

Hole in exterior drivers side window corresponding to interior wall staining
These are just a few examples of issues found during the course of an RV inspection.
Minimize the Risk so You Can Maximize the Fun
RV Inspections in Indiana and Illinois
RV Inspections and RV Services

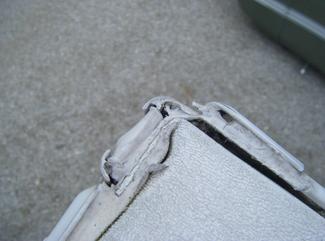

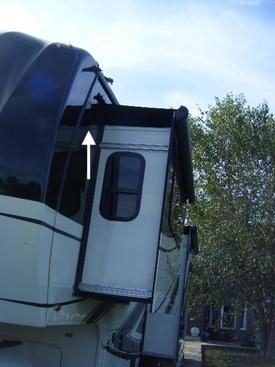

Sealant separating at edge of roof

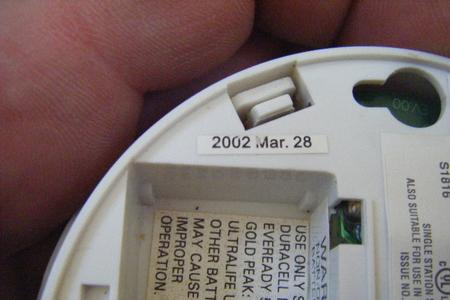

This is a combination carbon monoxide detector/smoke alarm. This inspection was done in 2016. These units should be replaced every five years. I also found that a battery was not installed in the detector as well.
